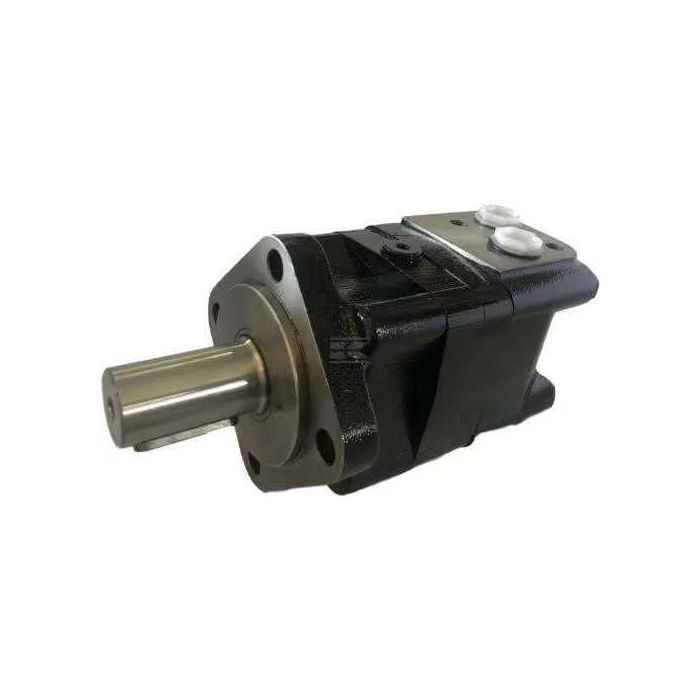

Hüdromootor SMS/OMS 200cm³ Ø32mm

Brand Kramp Long description Orbital motor type SMS / gopart Details High axial, radial axle load and a high torque Runs very quietly at low speeds Application range Can be used wherever a high torque and low speeds are required Also suitable for continuous reversal of rotation Can be used continuously in high pressure conditions Properties With leakage oil drain Roller construction Tapered roller bearing From the large orbit motors series Robust and compact construction Excellent starting characteristics Benefits Good price/performance ratio Minimal loss of power Flange shape Square Flange code SAE-A Number of mounting holes 4 Shaft type Straight parallel Shaft diameter 32 mm Displacement 200 cm³/rev Max continuous torque 438 N·m Max. continous working pressure 160 BAR Max intermittend working pressure 200 BAR Max pressure peak 225 BAR Max. flow rate 75 l/min Max rotation speed 375 r/min Min rotation speed 6 r/min Main port thread diameter 1/2 Inch Main port thread type G Drain port thread diameter 1/4 Inch Drain port thread type G Port position Side L1 Rotor length 32 mm Max. power 14 kW L2 Main port center to front flange distance 145 mm L Housing length 188 mm
