Multiplikaator GR2/3 1:2 434Nm

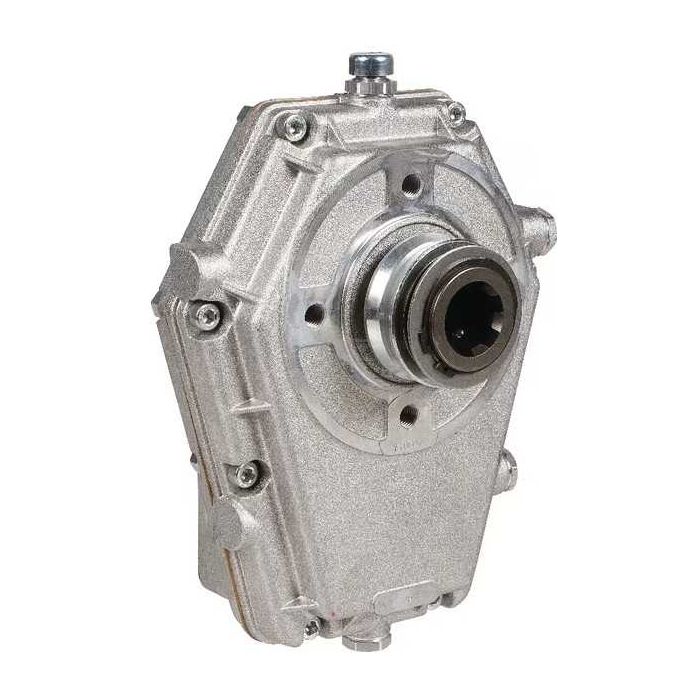

Borelli GBF-30-S-3-20 QR Details - Aluminium housing Product details - Input shaft: bush type shaft, Input shaft: 1 3/8" 6-spline, The gearbox is delivered without oil and must be filled before first use., First oil change after 50-70 operating hours, then after 500-700 operating hours or at least once a year. Application range - For agricultural applications Properties - Can be used for pump assembly 2 and 3 PLP and KP Benefits - Lightweight design Ratio factor - 1:2 Max. input rotation speed - 540 r/min Consists of - Gearbox, Not filled with oil, Without clutch bush Max. input torque - 434 N·m Max. output rotation speed - 1080 r/min Max. output torque - 210 N·m Connection 1 outside diameter - 1-3/8 Inch Connection 1 number of splines - 6 Connection 3 outside diameter - 1-3/8 Inch Connection 3 number of splines - 6 Gear arrangement reducing - 51-52 Contains oil - No Max. oil capacity - 0.35 l
